PULL BLADES
- All pull blades feature a solid shaft bullet in your choice of diameter: 1 ½”, 2”, 2 ½” (Larger, optional sizes available upon request)
- Blade shank thickness is 1 ½”
- Standard depths are 4” increments, 20”-24”-28”, 28”-32”-36”, 34”-38”-42”and 40”-44”-48” covers
CHUTED BLADES
- Blade shank thickness is 1” on RT70 and RT80, can be 1 ¼” on RT80-RT115 up to 38” cover, and 1 ½” on RT80-RT115 over 38” and on all RT120’s
- All standard blades feature a closed bottom unless you specify open or partially open bottom
BUG WIRE OR DROP BLADES
- Standard inside chutes – ¾” and 1”
- Standard radius is 2.5” and 4.5”
- Standard cover depths are 20”-24”-28”, 28”-32”-36”, 34”-38”-42”and 40”-44”-48”
STANDARD PLOW BLADES
- Standard inside chutes – ¾”, 1”, 1 ¼”, 1 ½”, 1 ¾”and 2”
- Standard radius is 7.5”
- Standard cover depths are 20”-24”-28”, 28”-32”-36”, 34”-38”-42”and 40”-44”-48”
LARGER RADIUS PLOW BLADES – cable TV, fiber optics, etc.
- Standard inside chutes – ¾”, 1”, 1 ¼”, 1 ½”, 1 ¾”, 2”, 2 ½” and 3”
- Standard radius is 10”, 12.5” and 15”
- Standard cover depths are 20”-24”-28”, 28”-32”-36”, 34”-38”-42”and 40”-44”-48”
GAS BLADES – for plastic gas pipe, w/wire and ribbon tubes
- Standard inside chutes – 1”, 1 ½”, 2”, 2 ½” and 3”
- Standard gas radius
- Standard cover depths are 20”-24”-28”, 28”-32”-36”, 34”-38”-42”and 40”-44”-48”
3 PHASE POWER BLADES – for multiple power cables
- Standard inside chutes – 1 ½” x 4 ½”, 1 ¾” x 5 ¼”, 2” x 6”, and 2 ½” x 7 ½”
- 3-Phase radius
- Standard cover depths are 20”-24”-28”, 28”-32”-36”, 34”-38”-42”and 40”-44”-48”

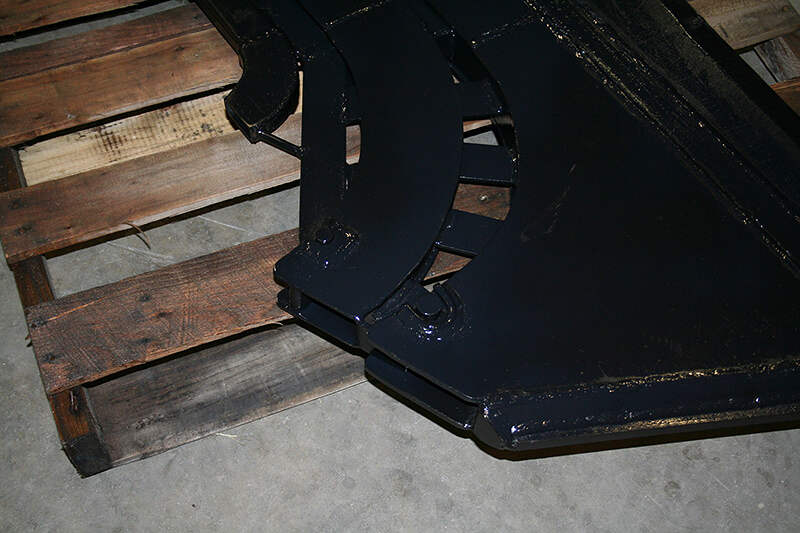

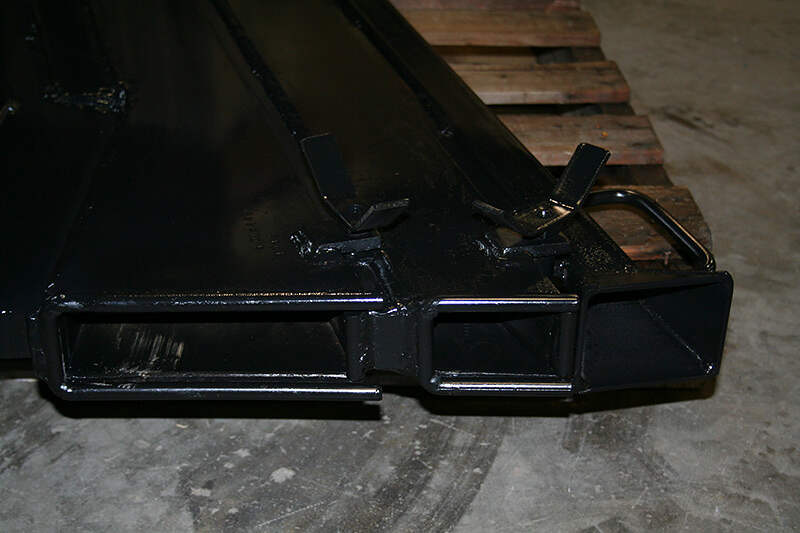

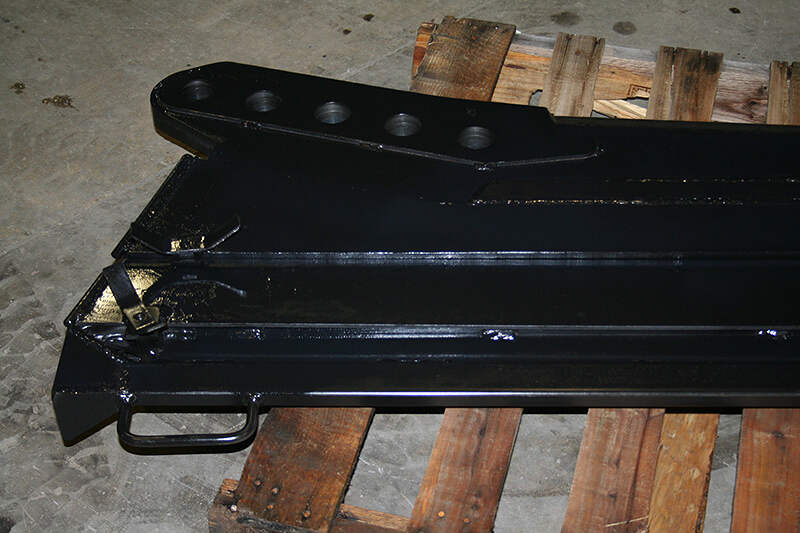

Close ups showing piggy back chutes for multiple cable installation
