Will fit the Vermeer LM42
PULL BLADES
- All pull blades feature a solid shaft bullet in your choice of diameter: 11/2”, 2”and 2 ½” (Larger, optional sizes available upon request)
- Blade shank thickness 5/8”
- Standard depths are 12”, 15”, 18”, 24”, 30”, and 36”others available upon request
CHUTED BLADES
- Blade shank thickness is 5/8”
- All standard blades feature a closed bottom unless you specify open or partially open bottom.
BUG WIRE OR DROP BLADES
- Standard inside chutes – 5/8”, ¾” and 1”
- Standard radius is 2.5” and 4.5”
- Standard cover depths are 12”, 18” and 24” (Available as single depth or adjustable 3 depths – 3” increments)
STANDARD PULL BLADES
- Standard inside chutes – 5/8”, ¾”, 1”, 1 ¼”, 1 ½”, 1 ¾” and 2”
- Standard radius is 7.5”
- Standard cover depths are 12”, 18”and 24” (Available as single depth or adjustable 3 depths – 3” increments)
LARGER RADIUS PLOW BLADES – cable TV, fiber optics, etc.
- Standard inside chutes – ¾”, 1”, 1 ¼”, 1 ½”, 1 ¾”, 2”and 2 ½”
- Standard radius is 10”, 12.5” and 15”
- Standard cover depths are 12”, 18”and 24” (Available as single depth or adjustable 3 depths – 3” increments)
GAS BLADES – for plastic gas pipe, w/wire and ribbon tubes
- Standard inside chutes – 1”, 1 ¼”, 1 ½”, 1 ¾”, 2” and 2 ½”
- Standard gas radius
- Standard cover depths are 18”and 24” (Available as single depth or adjustable 3 depths – 3” increments)

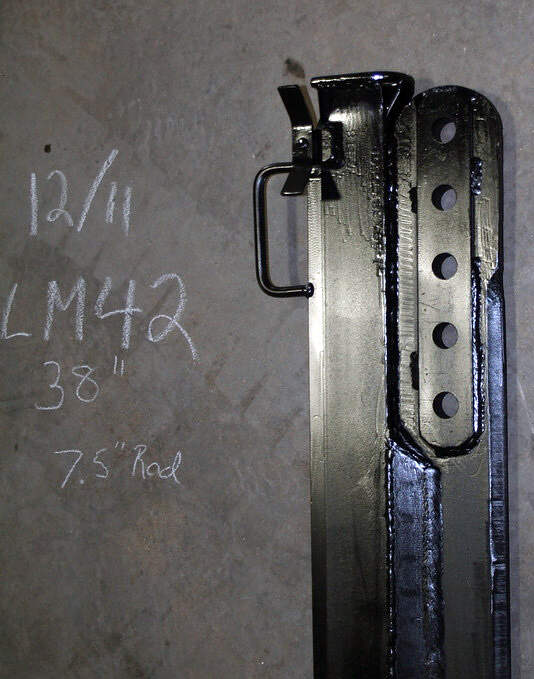

Vermeer LM-42 blade shown with adjustable 32”-35”-38” cover depth and 7.5” radius.
This is a custom length.
