SPB Vermeer 75 Series

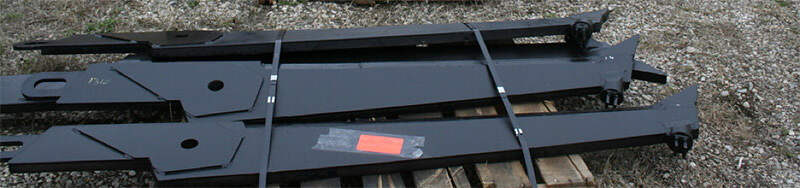

Will fit the Vermeer* RTX750 and Flex Track 75

PULL BLADES

• All pull blades feature a solid shaft bullet in your choice of diameter: 1 ½”, 2” and 2 ½” (Larger, optional sizes available upon request)
• Blade shank thickness is 1 ¼”
• Standard depths are 24”, 30”, 36”, 42” and 48”, others available upon request.
• RTX750 is 3 depth adjustments – 3” increments
• Flex Track 75 is one hole, depth adjustments are on machine

CHUTED BLADES

• Blade shank thickness is 1” on 24”-30” cover, 1 ¼” on 36”-42” cover and 1 ½” on 42”cover and up.
• All standard blades feature a closed bottom unless you specify open or partially open bottom.

BUG WIRE OR DROP BLADES

Standard inside chutes – ¾”and 1”
Standard radius is 2.5” and 4.5”
Standard cover depths are 24”, 30”, 36” and 42” (RTX750 is 3 depth adjustments – 3” increments)(Flex Track 75 is one hole, depth adjustments are on machine)

STANDARD PLOW BLADES

• Standard inside chutes – ¾”, 1”, 1 ¼”, 1 ½”, 1 ¾”and 2”
• Standard radius is 7.5”
• Standard cover depths are 24”, 30”, 36” and 42” (RTX750 is 3 depth adjustments – 3” increments)(Flex Track 75 is one hole, depth adjustments are on machine)

LARGER RADIUS PLOW BLADES-cable TV, fiber optics, etc.

• Standard inside chutes – 1”, 1 ¼”, 1 ½”, 1 ¾”, 2”, 2 ½”and 3”
• Standard radius is 10”, 12.5” and 15”
• Standard cover depths are 24”, 30”, 36” and 42” (RTX750 is 3 depth adjustments – 3” increments)(Flex Track 75 is one hole, depth adjustments are on machine)

GAS BLADE – for plastic gas pipe ,w/wire and ribbon tubes

• Standard inside chutes – 1”, 1 ½”, 2”, 2 ½”and 3”
• Standard gas radius
• Standard cover depths are 24”, 30”, 36” and 42”
• (RTX750 is 3 depth adjustments – 3” increments)(Flex Track 75 is one hole, depth adjustments are on machine)

3 PHASE POWER BLADES – for multiple power cables

• Standard inside chutes –1 ½” x 4 ½”, 1 ¾” x 5 ¼”, 2” x 6”and 2 ½” x 7”
• 3 phase radius
• Standard cover depths are 30”, 36” and 42” (RTX750 is 3 depth adjustments – 3” increments)(Flex Track 75 is one hole, depth adjustments are on machine)
