SPB 8020 Turbo SERIES (3 pin)

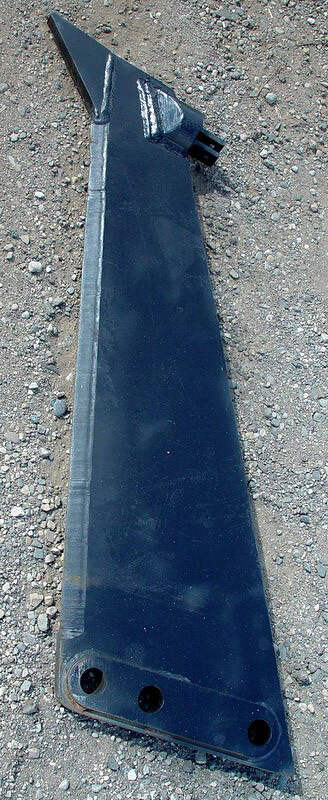

PULL BLADES

• All pull blades feature a solid shaft bullet in your choice of diameter: 1 ½”, 2”, 2 ½” (Larger, optional sizes available upon request)
• Blade shank thickness is 1” on 18”-30” cover, 1 ¼” on 36”-42” and 1 ½” on 48”
• Standard depths are 18”, 24”, 30”, 36”, 42” and 48”

CHUTED BLADES

• Blade shank thickness is 1” on 18”-30” cover, 1 ¼” on 36”-42” and 1 ½” on 48”
• All standard blades feature a closed bottom unless you specify open or partially open bottom

BUG WIRE OR DROP BLADES

• Standard inside chutes – ¾” and 1”
• Standard radius is 2.5” and 4.5”
• Standard cover depths are 18”, 24”, 30”, 36” and 42”

STANDARD PLOW BLADES

• Standard inside chutes – ¾”, 1”, 1 ¼”, 1 ½”, 1 ¾” and 2”
• Standard radius is 7.5”
• Standard cover depths are 24”, 30”, 36” and 42”

LARGER RADIUS PLOW BLADES – cable TV, fiber optics, etc.

• Standard inside chutes – 1”, 1 ¼”, 1 ½”, 1 ¾”, 2”, 2 ½”, and 3”
• Standard radius is 10”, 12.5” and 15”
• Standard cover depths are 24”, 30”, 36” and 42”

GAS BLADES – for plastic gas pipe, w/wire and ribbon tubes

• Standard inside chutes – 1”, 1 ½”, 2”, 2 ½” and 3”
• Standard gas radius
• Standard cover depths are 24”, 30”, 36” and 42”

3 PHASE POWER BLADES – for multiple power cables

• Standard inside chutes – 1 ½” x 4 1/2″, 1 ¾” x 5 ¼”, 2” x 6” and 2 ½” x 7 ½”
• 3 phase radius
• Standard cover depths are 30”, 36” and 42”

•

•
